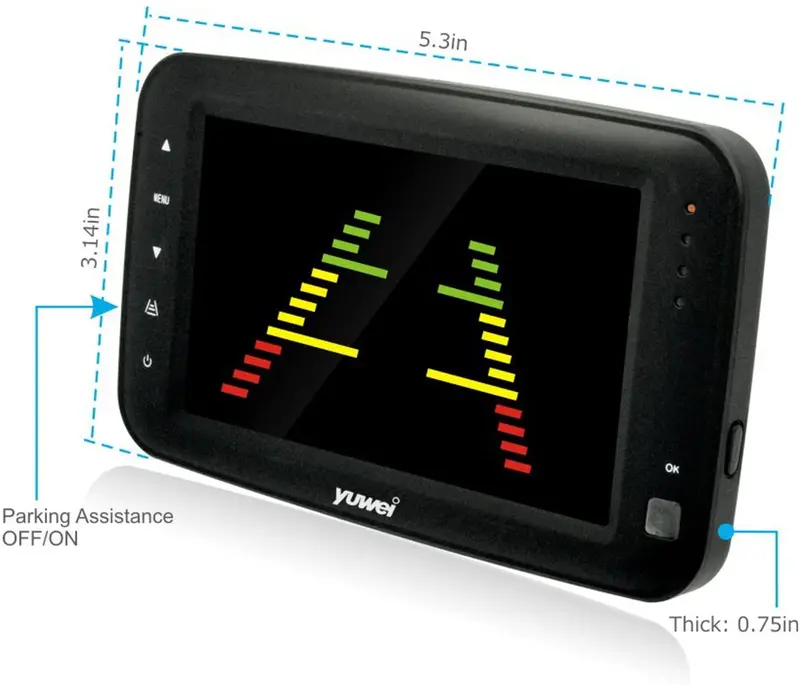

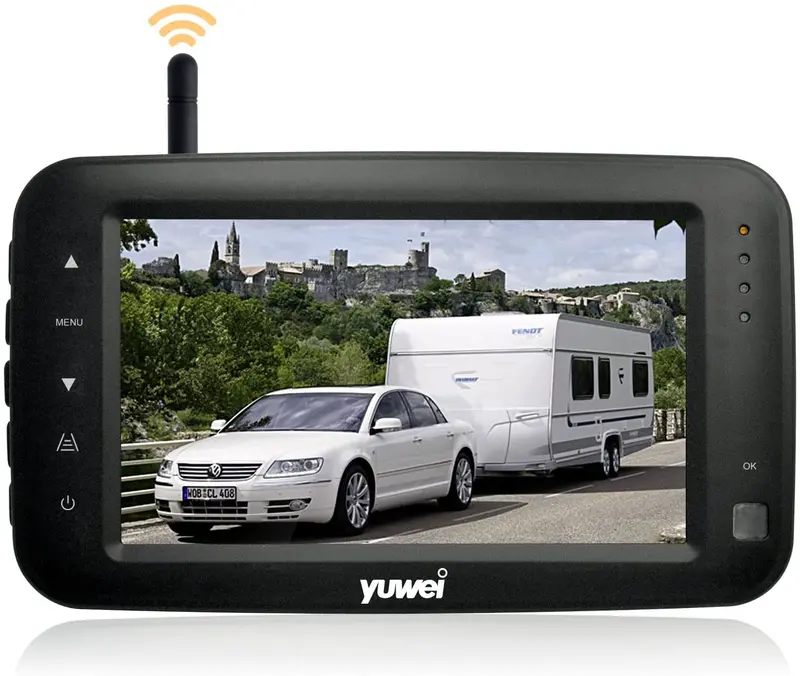

Yuwei 4.3-Inch Wireless HD LCD Monitor with Grid Lines – Compatible with YW-34132 Camera Systems

Description

MONITOR
Panel Size4.3″ LED Digital Panel
Video SystemPAL/NTSC auto
Resolution480 x 3(RGB) x 272
Brightness400cd/㎡
Contrast Ratio500:1
Screen Mode16:9
Field of ViewTop: 50°, Bottom 70°, L/R 70°
Audio: NO
Dot Pitch0.077(W) x 0.231(H)mm
Active Area110.000(W) x 62.832(H)mm
Power InputDC12-32V
Operating Temperature-20℃ to approx. 70℃
Operating Temperature-30℃ to approx. 80℃
Transmission TypeDigital Wireless
Support Camera1
RF Impedance1vp-p 50Ω
Pairing Paired
Power ConsumptionAbout 4W
Power SupplyDC9-32V
Latency100ms Max
Frame Rate30f/s
Operation Frequency2400-2483.5 MHz
Line of Sight Range100meters(310feet)
Latency100ms Max
Video CodecMPEG4
Out Power18dBm
RF Bit Rate8 Mbps
Spread SpectrumFHSS
Overlapping Hopping channel80
Hopping rate1200/S
