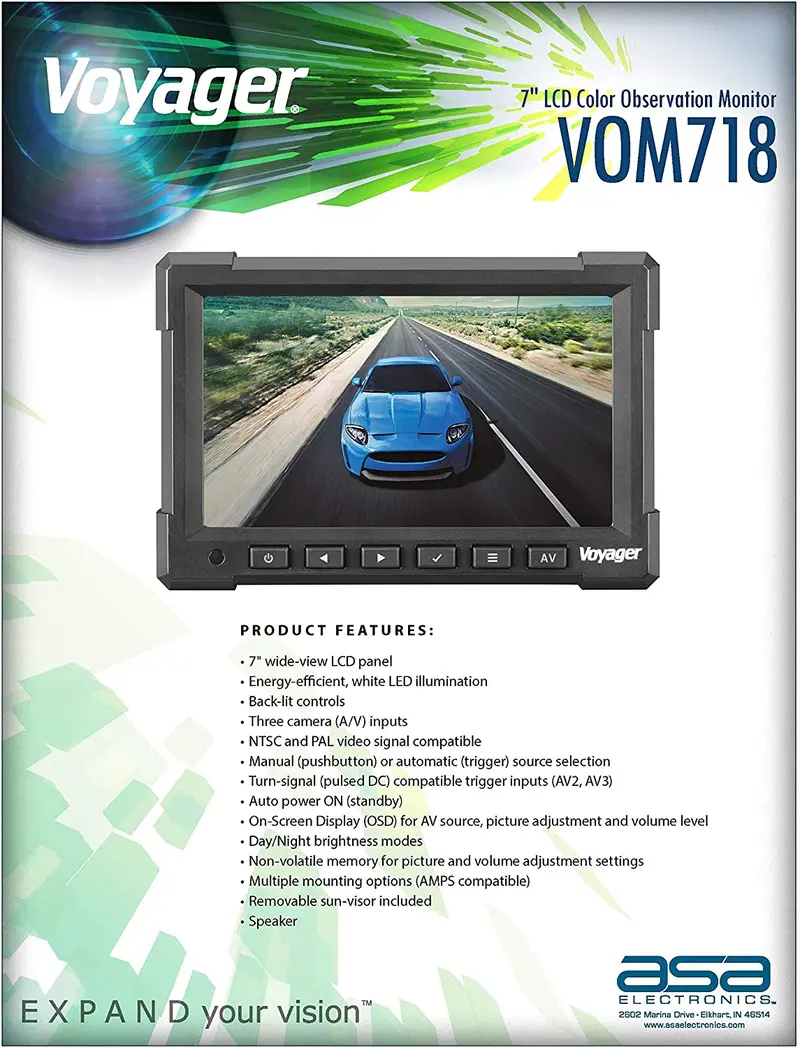

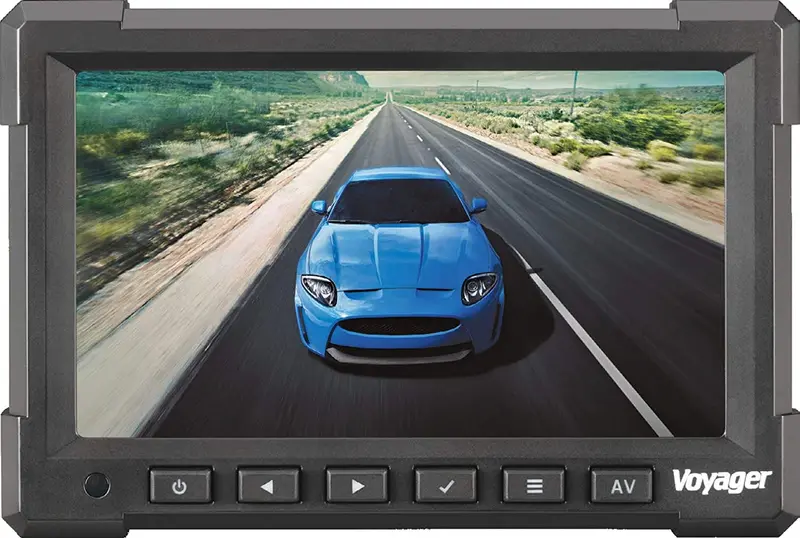

Voyager VOM718 7-Inch Multi-Camera Monitor Supporting NTSC/PAL (Cameras Not Included)

Description

Voyager VOM718 Heavy Duty 7″ LCD Color Backup Rear View Vehicle Observation Monitor with 3 Camera Inputs, High-Quality Video for up to 3 Cameras (Cameras sold separately), Turn-signal (pulsed DC) Compatible Trigger Inputs (AV2, AV3), LCD Panel 480 x 234, NTSC and PAL Video Signal Compatible, 12V and 24V Power System Compatible, Auto Day/Night Brightness Mode

This 7″ Backup camera monitor displays clear, high-quality video for up to 3 cameras (Cameras sold separately).

When paired with up to 3 Voyager observation cameras, the VOM718 7″ Rear View Monitor eliminates blind spots and aids drivers in backing up, changing lanes, and pulling into traffic by displaying high resolution color images of the vehicle’s surroundings.

General Specifications

• Power System: 12V DC
• Operating Voltage Range: 10 ~ 24V
• Current Draw @ 12V: Idle 100mA; Nominal 492mA; Maximum 507mA
• Operating Temperature Range: -4°F to 149°F, -20°C to 65°C
• Storage Temperature Range: -40°F to 176°F, -35° to 80°C
• Operating Relative Humidity: 85%
• Overall Dimensions: 7.56″ W x 5.06″ W x 1.10″ D
• Product Weight (unpackaged): 1.3 lbs.

Performance Specifications

• Video / Display System: NTSC/PAL
• Video Input Signal (Composite): 1Vp-p @ 75 ohms
• Audio Output: 1W

LCD

• Diagonal Size: 7″
• Resolution: 480 x 234
• Brightness: 450 nit
• Contrast Ratio: 400 : 1
• View Angles: Top 55°, Bottom 65°, Left 70°, Right 70°
• Display Format (Aspect Ratio): 16:9
• Backlight Type: LED
• Backlight Life (min): 20,000 Hours
• Response Time: Rise 15 ms, Fall 20ms

Package includes

• 1x Voyager VOM718 Monitor
• Sun Shield
• 1x Wiring Cable
• 4x P/H Machine Screws M4X8mm
