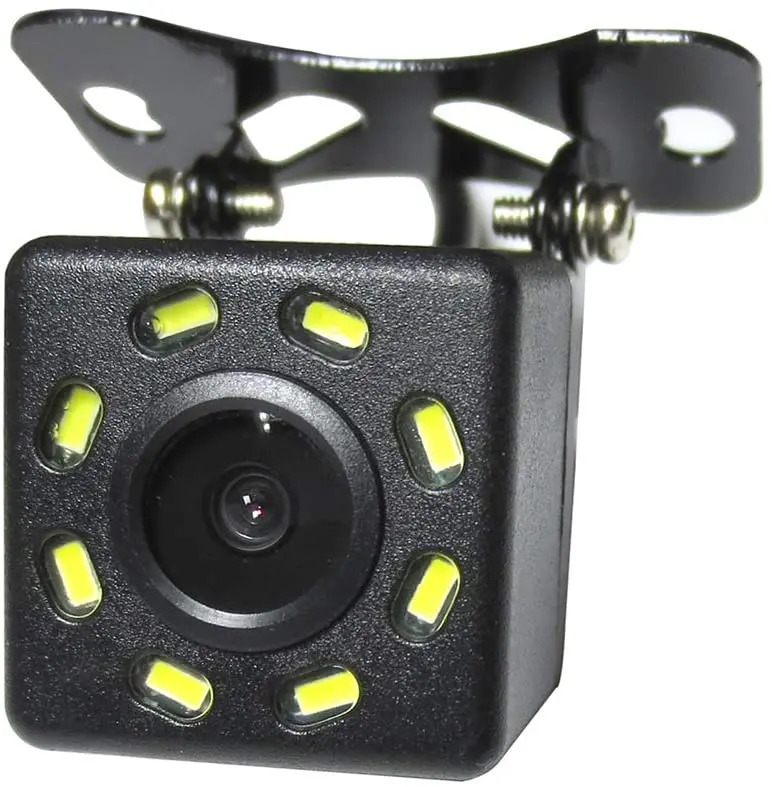

Universal 12V CCD Backup Camera – Starlight Night Vision, Waterproof Design, and Loop-Wire Installation for All Vehicles

Description

Color: Starlight night vision Camera

The starlight night vision universal car vehicle backup camera is designed uniquely with 2 small wire loops, and it can be used widely.
You either can use it as a rear view camera, or use it as a front view or side view camera.
Default setting is for front view without parking guideline.
You can follow below tips to adjust what you prefer.
1. Rear view with guideline, cut both the white wire loop and green wire loop.
2. Rear view without guideline, only cut white wire loop.
3. Front view with guideline, only cut green wire loop.
4. Front view without guideline, don’t need to cut any wire.
After you cut the wires, pls remember to use electric tape to keep it insulated.

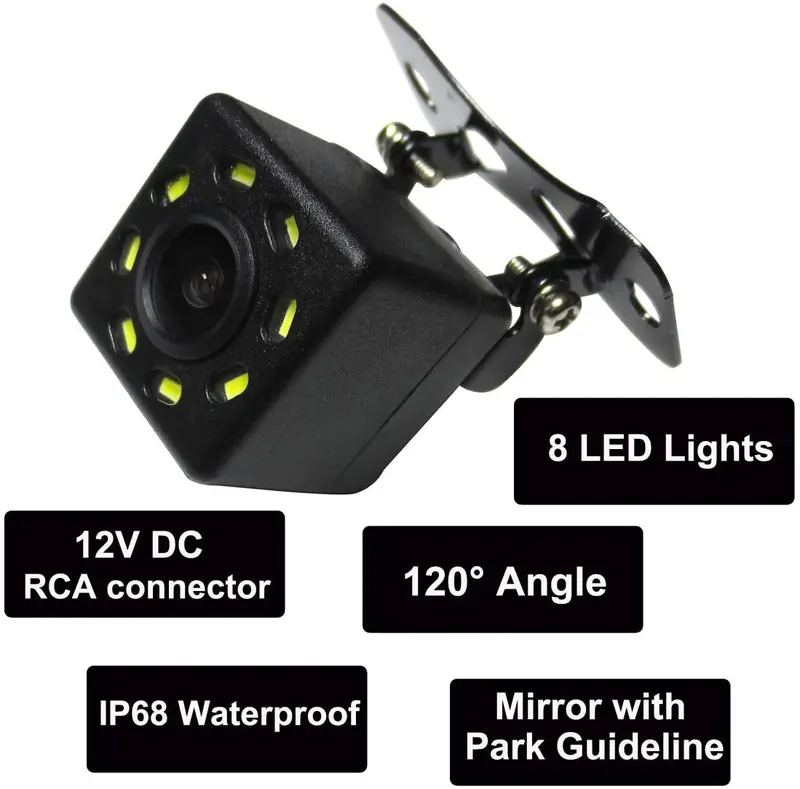

Specifications:
Image Sensor:Color CCD
Power Supply: DC 12V
TV System: NTSC System
Horizontal Resolution: 600 TV Lines
Shell Material: ABS
Lens Angle: 120 degree
Waterproof: IP68
White Balance: Automatic
Operating temperature: -20℃ to 70℃
Package included:
1x Vehicle Backup Camera
1x Power Cable(3.28ft/1M)
1x Video Cable(19.68ft/6M)
1x Sticker
2x Screws
1xEnglish User Manual
