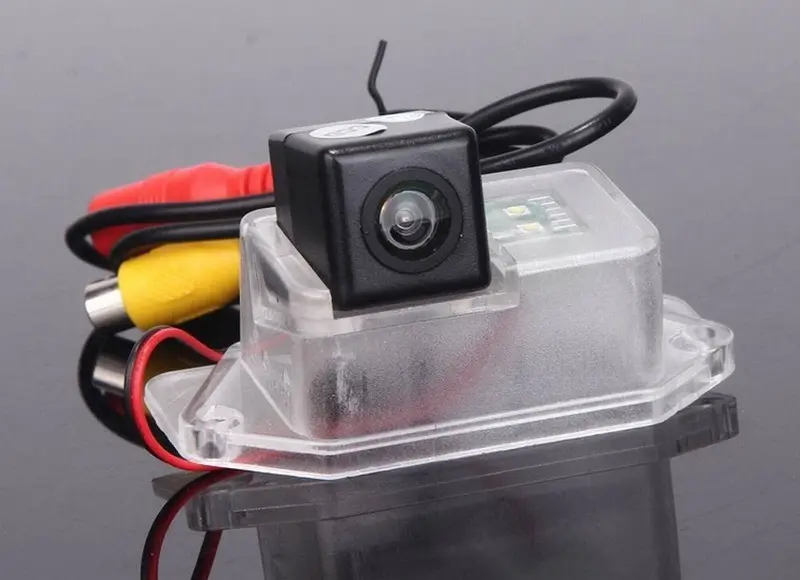

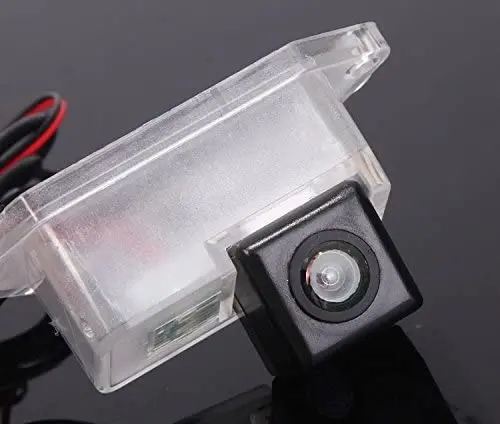

SYGAV CCD Reverse Camera for Mitsubishi Lancer Parking Assistance

Description

Compatible Cars: for Mitsubishi Lancer
Support NTSC Video system.
Image Sensor: 1/3 “OV Color CCD PC3030
Effective Pixels: 728(H) x 492(V)
Horizontal Resolution: 480 TVL
Minimum Illumination: 1.0Lux F = 1.2(0Lux with IR on)
Night Vision: 5-10meters
Lens: 1.8mm
Diagonal Viewing Angle: 120 degree (left to right) 170 degree (up and down)
Synchronization: Internal synchronization
Signal to noise ratio: >48db
Electronic Shutter: Auto
Video Output: RCA interface, 1.0Vp-p, 75Ohm
White Balance: Auto
Backlight Compensation: Auto
Power: DC 12V
Current Consumption: 50-60mA, Max 130mA with IR on
Operating Temperature: -20℃ ~ +60℃, RH95% Max
Storage Temperature: -30℃ ~ +80℃, RH95% Max
Video cable is RCA connector
Package Content
1 x Car Rear View Camera
1 x 1.5m power cable
1 x 6m Video Cable
