Description

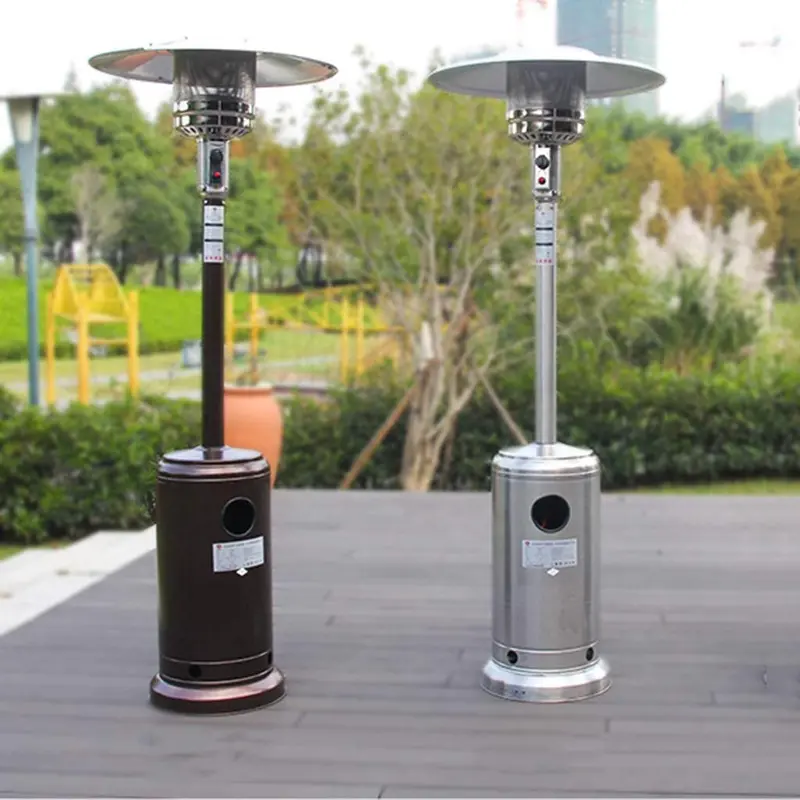

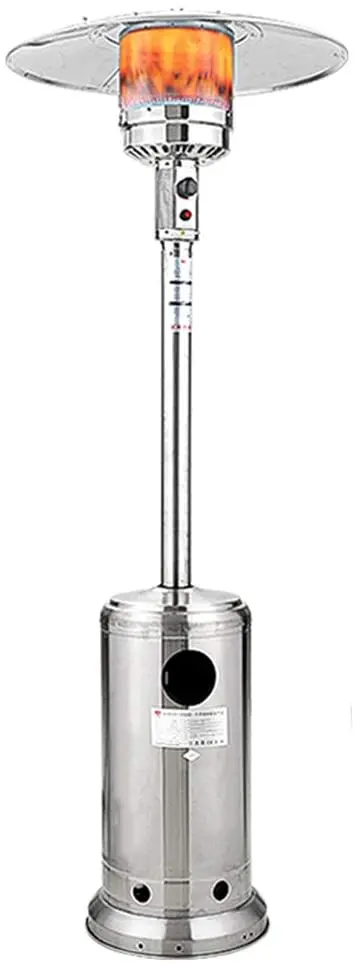

Product Name: Gas Heater
Use gas source: liquefied gas, natural gas
Safety guarantee: dumping, flameout, hypoxia protection
Base
Material: Thickened cold-rolled steel plate with a diameter of 460 mm. Function: There is a fixing hole on the side,
which can fix the heater on the ground. You can also install a movable wheel (optional).
Product installation steps
1. Fix the three support rods on each position of the base with three M 8×15 mm screws.
2. Use 6 M 6×35 mm screws and 6 mm diameter nuts to connect the support tube and 3 support rods together.
3. Place the bucket cover vertically
4. Use 9 screws and nuts to splice the reflective cover together.
5. Place 3 gaskets with a diameter of 8 mm (outer diameter 20 mm) on the supporting screws on the furnace head.
6. Put the reflective cover on the furnace head, and fix the reflective cover with the furnace head with 3 M 8 nuts and washers.
7. Use 4 M 6×10 mm screws (remove from the furnace head) to fix the furnace head and the support tube together.
8. Connect the pressure reducing valve and the rubber hose with a seamless steel pipe, and then connect it to the gas bottle.
