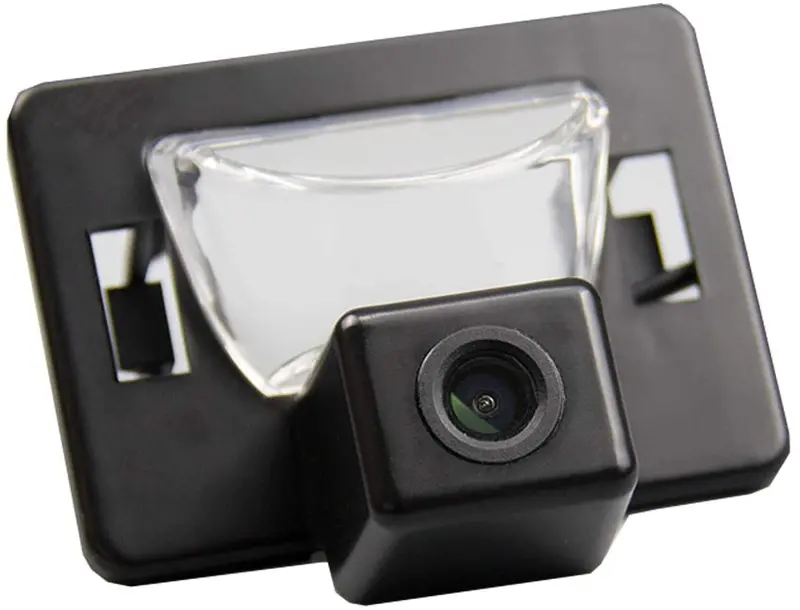

Mazda 5 & Ford I-Max Rear Backup Camera with License Plate Light Integration (2004–2010)

Description

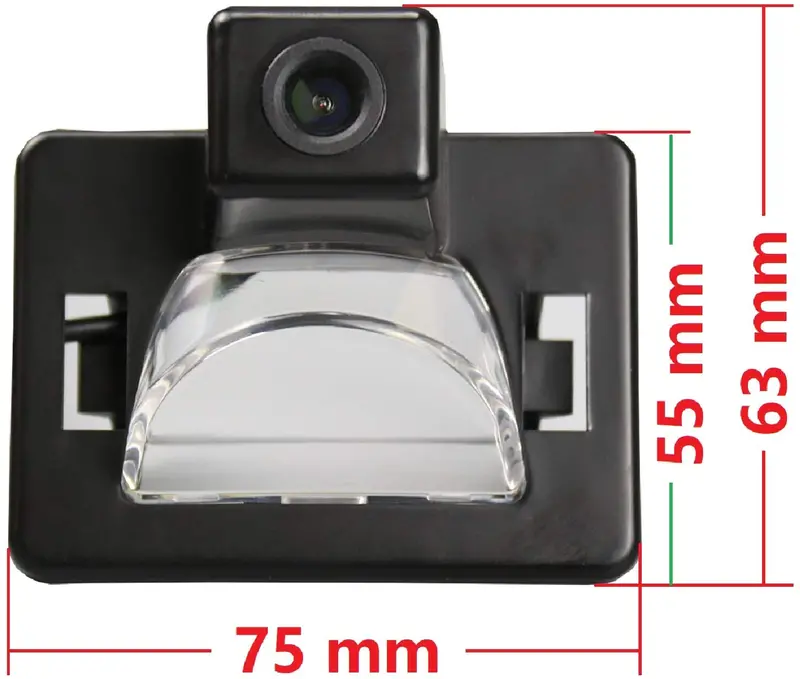

Dear customer,Please must check the camera size and appearance before place a order, see if can fit your car license plate lamp place size and appearance! Because the same car model in different countries may have some difference,please check the camera size and compare the installation of your car carefully to avoid mistake.

This product could fit for all below models as expected:

Mazda 5 from 2005 to 2010

Mazda 5 Mazda5 MPV for Ford i-MAX 2004~2010

Technique Parameter:

1. TV system: NTSC (if you need PAL, please leave a message)

2. Resolution: 480/520 TV lines

3. Lens angle:170°

4. S/N ratio: more than 48db(AGC-OFF)

5. Video Color: Colorful

6. Video Output: 1.0Vp-p,75Ω

7. Image Device: 1/4 inch color

8. Sensing area: 5.78 x 4.19mm

9. Sync. system: internal

10.Power supply: DC 12V

11,White Balance: Auto

12.Waterproof Class: ip 66

13.Effective pixels: 628 x 586 Pixels

14.Electronic Shutter: 1/60-1/10000 seconds

15.Current Consumption: ≤150mA

16.Current consumption: 90mA Max

17.Storage temperature:-40°C to +60°C, RH95% Max

18.Minimum illumination:0.3Lux/F1.2

19.Operating Temperature:-30°C to +50°C, RH95%

Package Content:

1 x CCD CAR Camera

1 x 6M video cable

1 x 1M power cable

1 x User Manual
