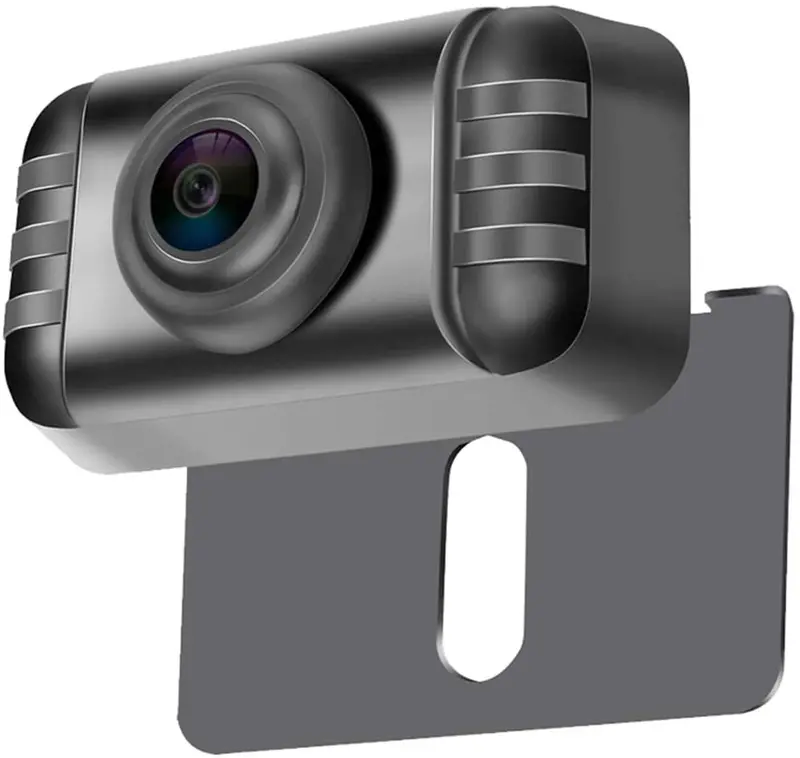

Leekooluu 720P Hitch-Mount Backup Camera – IP69K Waterproof, Smart Switch, Adjustable Grid Lines

Description

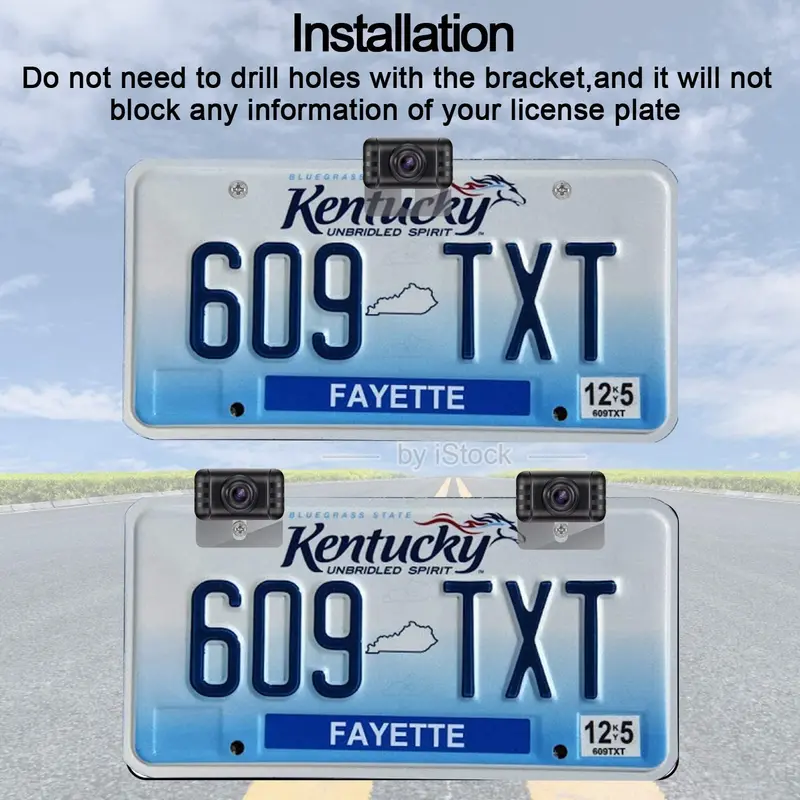

Installations Guide
With Easy installation, you can do it yourself.
1.Just Unscrew the screws on the license plate with wrench.
2.Install the camera on the front of license plate fixed with two original screws. 3.Connect the power wire of backup camera to the power of reverse light.
4.Connect the 23.5ft extension wire of backup camera to the head unit of vehicle.
Specifications:
Viewing angle: 170 degree(diagonal)
TV system: NTSC
Resolution:720P
Waterproof Rating: IP69
Minimum illumination: 0.3Lux
Power Consumption: 250mA
Power Supply: 12V
Other items: Automatic white balance,AGC and BLC.
Operating temperature: -22 to 176 degrees centigrade
Package included:
1 x Backup Camera
1 x 23.5ft RCA Video Cable
1 x User Manual
2 xT-Taps
Note:
1.Please test the backup camera before routing 23.5ft extension wire from back to front.
2.If your head unit without a trigger wire,then no need to use the thin red trigger wire on video cable.
3.Start the vehicle and turn to reverse gear to test the camera before installation.
