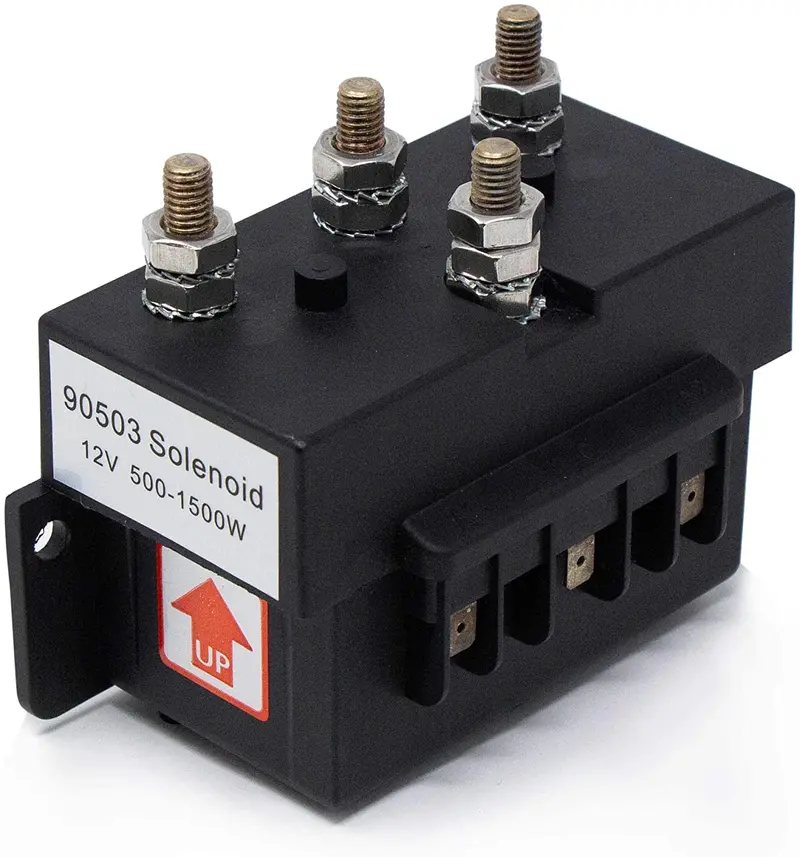

Five Oceans FO-3292 Dual-Direction Windlass Solenoid Control Box – 12V Reversing System for 2-Wire Motors

Description

This Five Oceans’ control box operates an anchor windlass system up to 1500 watts. It’s a dual direction 12V (2-wire motors) reversing solenoid reliable and compact in size. The external connections on the solenoid make them very easy to install. Our solenoid allows multiple control stations using foot switches and toggle switches. The entire unit has been designed to simplify and speed up the various electrical connections. For this purpose, there is no need to open and/or pierce the container, as all the terminals and the panel for the electrical connections are perfectly accessible from the outside. Outer construction in self-extinguishing polyester resin, resistant to shock and marine corrosion. We highly recommend this control box for the Five Oceans Atlantic and Pacific windlass series of 600W/900W or any other windlass with 2-wire motors.
SPECIFICATIONS:
Voltage: 12V DC
Wire Motor: Two (2)
Sealed and Corrosion Resistant: Yes
Maximum Power of the windlass/capstan motor: 1500 Watts
Dimension: 5 1/8″ (30mm) x 4 5/16″ (110mm) x 2 3/4″ (70mm)
Replacement Part For:
600 Watts Pacific Windlass Series (FO-3930/3931)
900 Watts Pacific Windlass Series (FO-3287/3442)
Accessory for:
900 Watts Arctic Capstan Serioes (FO-3716)
Compatible with Windlass from other brands with 2-wire motors up to 1500 Watts.
PRODUCT NUMBER: FO-3292
