Dual-Camera Wireless Backup System – 7-Inch HD Monitor, 170° Wide-Angle Lenses, 18 IR LEDs, and Dynamic Guide Lines

Description

Rear view camera & 7″ TFT LCD Monitor Vehicle
Security System Features:
1.Designed for Truck/Trailers/Campers/Semi truck/hitch hotel/box truck/Motorhome/cam/ Caravan/Boat Yacht /Vehicle use 12 & 24 Volt Systems
2.Used for Parking, Reversing, Truck Docking, Driving Safety
3.Rear view pictures can be overturned by the buttons of Up / Down / Left / Right
4.Rear view Camera : IP 68 Rating Waterproof, 170 Degree Wide Viewing, No guide line, won’t affect image.
5.The camera has a 752×582 pixels resolution that will give you a perfect and detailed picture.
6.Installation is not difficult. Instructions are included.

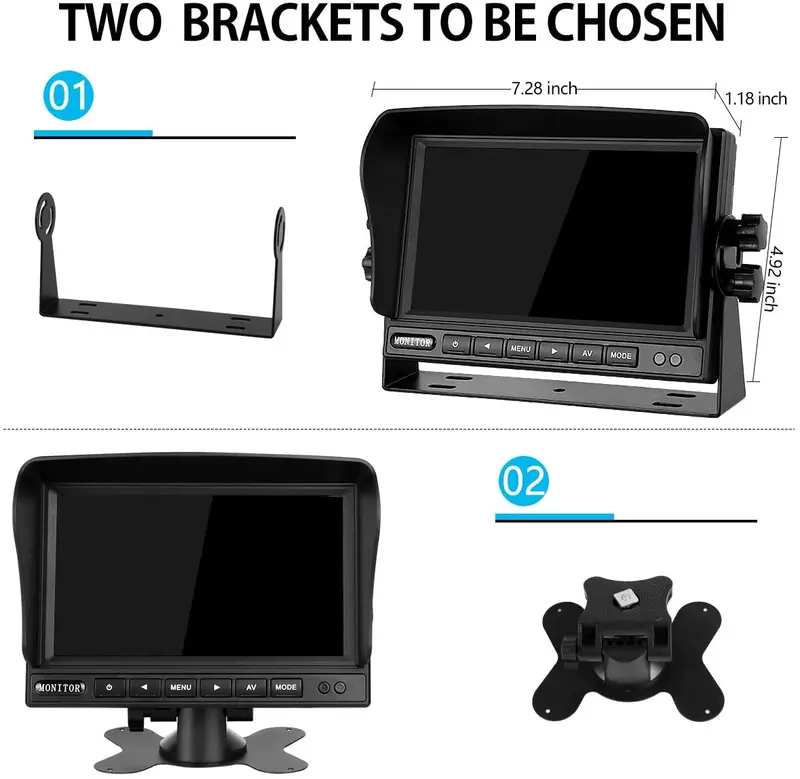

7″TFT LCD Monitor Specification:
Screen Size:7.28inch*1.18inch*4.92inch
Display Component: Color TFT LCD
Resolution: 800*480
TV System: PAL/NTSC auto
Screen ratio 16:9/4:3 adjustable
Housing Material: ABS
Rear-view: AV2 AUTO reverse when trigger activated
View Angle: up / down / left / right
Operate mode: key operation & remote control
Operating voltage: DC12V-24V
Power consumption: about 6W
Rear view Camera Specification:
Camera Size:2.87inch*1.73inch*3.54inch
Image Sensor: CCD
Effective Pixels: 752*582 pixels
Resolution: 480 TV lines
Lens Viewing Angle: 170 Degrees
Waterproof IP Rate: IP68
Operating voltage: 12V-24V
IR LEDs: 18PC
Pin Lens: f=2.1mm / F=2.0
S/N Radio: better than 48db
Work Temp: -20℃~+60℃

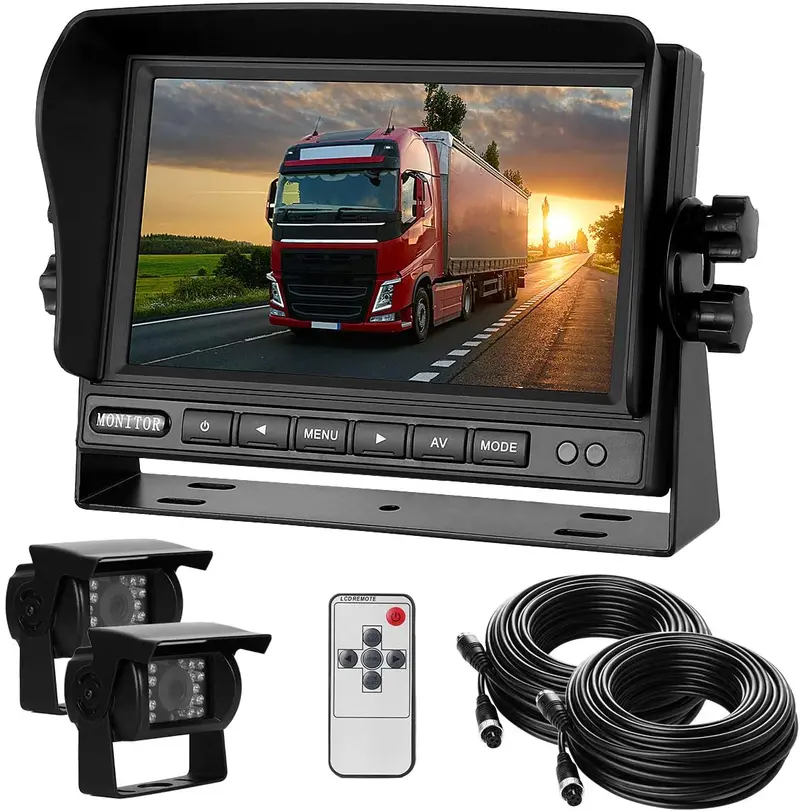

Package Included:
1 x 7 inch Monitor
2x Back up Camera
1 x Monitor Data Cable
2x20M Extension Cable
1 x Bracket
1 x User Manual
1 x Remote Controller
