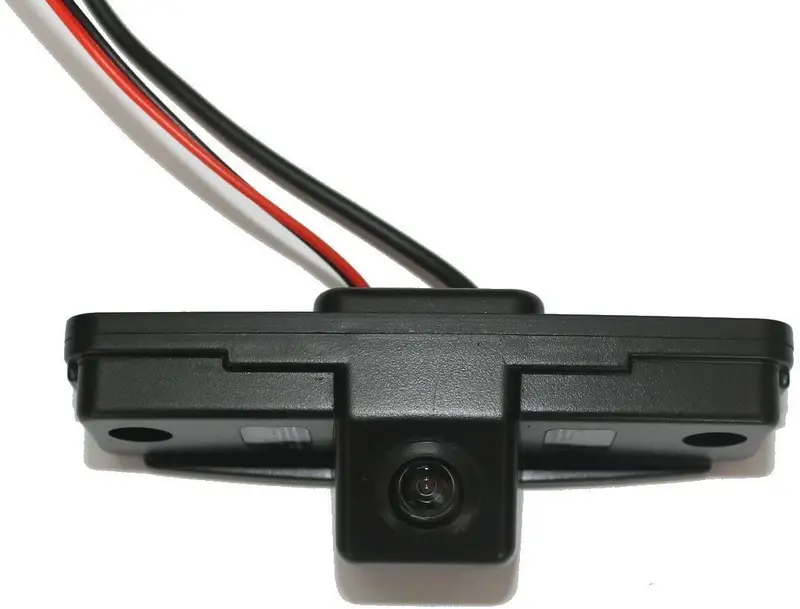

CCD Rearview Parking Camera for Subaru Forester, Outback, and Impreza Models

Description

Sony chip CCD Special Car Rear View Camera for:
SUBARU Impreza Sedan
SUBARU Forester
SUBARU Outback (2007-2014)
Sony chip CCD camera is high clear, better quality than the Sharp CCD & CMOS and CMD.
Technique Parameter:
Image sensors: 1/3″ color Sony chip CCD TV
System: NTSC default
White Balance: Auto Video
Color: Colorful
Effective Pixels : 580X540
Resolution : 480 TV lines ( Regular CMOS/CMD is 420 TV line )
Video Output: 1.0Vp-p,75Ω Electronic Shutter: 1/60(NTSC)-1/10000S S/N ratio: Better Than 48db
Operation Temperature: -20°C+80°C RH95%
Working Power (DCV): 12V
Current consumption: 90mA Max
How to Install :
-Take out your stock license plate light at the back of your car
-Fix the camera to where the stock license plate light was
-Connect the built-in license plate light of the camera to where the stock license plate light was connected to get the power
-Connect the power of the camera to your brake lights – red wire to positive and black wire to negative
-Connect the video cable of the camera to the extension cord
-Connect the extension cord to your car monitor
