Bullet Lines Torque Converter Clutch for Go-Karts — Replaces Comet TAV2, Manco 10T/12T (1″ Bore, #35/#40/#41 Chain)

Description

Bullet Lines 1″ torque converter replaces Comet TAV2 30 – 100 Torq-A-Verter models 218354A, 218355A TAV2 30-75. It is also is a replacement for Yerf Dog, Manco, Carter Brothers, Cushman Scooters, and more

Bullet Lines 1″ go kart clutch is an asymetrical inline small engine clutch that replaces Comet TAV2 30 – 100 Torq A Verters. This clutch will help you get more power of your small engine by reducing engine load with nearly a 10 – 1 overdirve. A torque converter acts similar to a transmission, allowing higher speeds of your small engine, and smoother acceleration.Small engine Torque Converter clutches are heavily used in riding lawnmowers, small tractors, go karts, mini bikes, and waterski winches.

This torque converter fits a 1″ shaft and comes with your choice of a 10 tooth sprocket for a 40/41 chain or a 12 tooth sprocket for a 35 chain. It will work with small engines producing 8 HP – 13 HP

Model 1: 1″ Bore, 35 Chain, 12 Tooth
Model 2: 1″ Bore, 40/41 Chain, 10 Tooth

Engine compatability: Bullet Lines Torque Converter is compatible on most engine with horizontal shaft.

Briggs

Robin

Tecumseh

Honda (and clones)

Kohler

Clinton

Lifan

Specifications:

Driven unit: Dia. 157mm

Drive clutch bore: 1″

Belt: Asymmetrical type

Top width: 19mm(3/4″)

Sprocket teeth: Choice of 10 teeth or 12 teeth

Engagement range: 2350±200 RPM

Recommended engine: 8HP – 13HP engine, 1″shaft with flat key

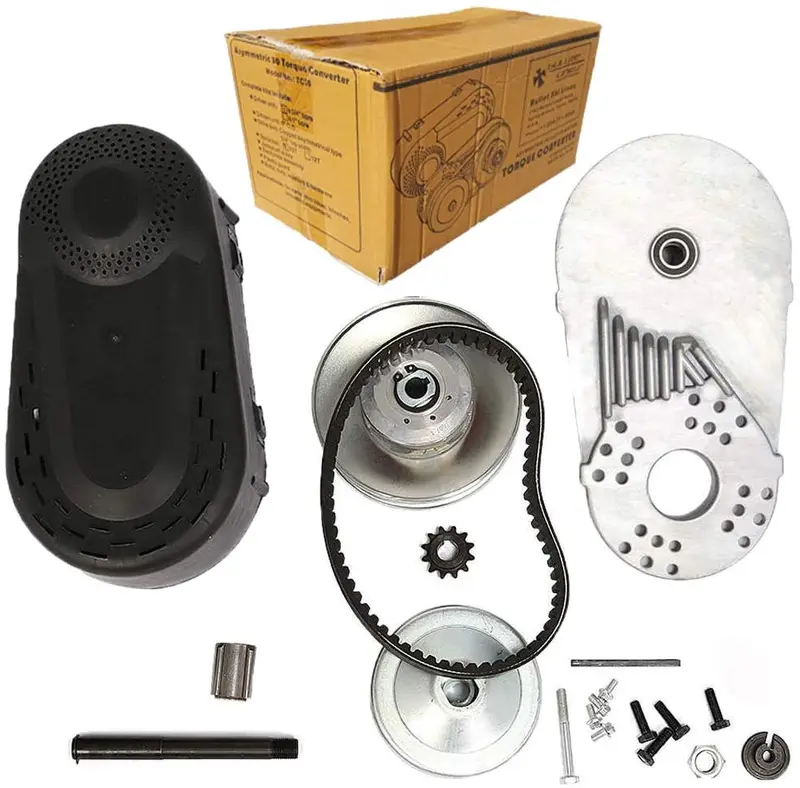

The Torque Converter assembly includes:

Driver Unit:1set

Driven Unit:1set

V-Belt:1pc

Driven Shaft & Gear:1set

Side Retainer Plate:1pc

Torque Converter Cover:1pc

Instructions

All respective trademarks and registered trademarks appearing on this website belong to their respective owners

Product does not need bronze idler bushing.
