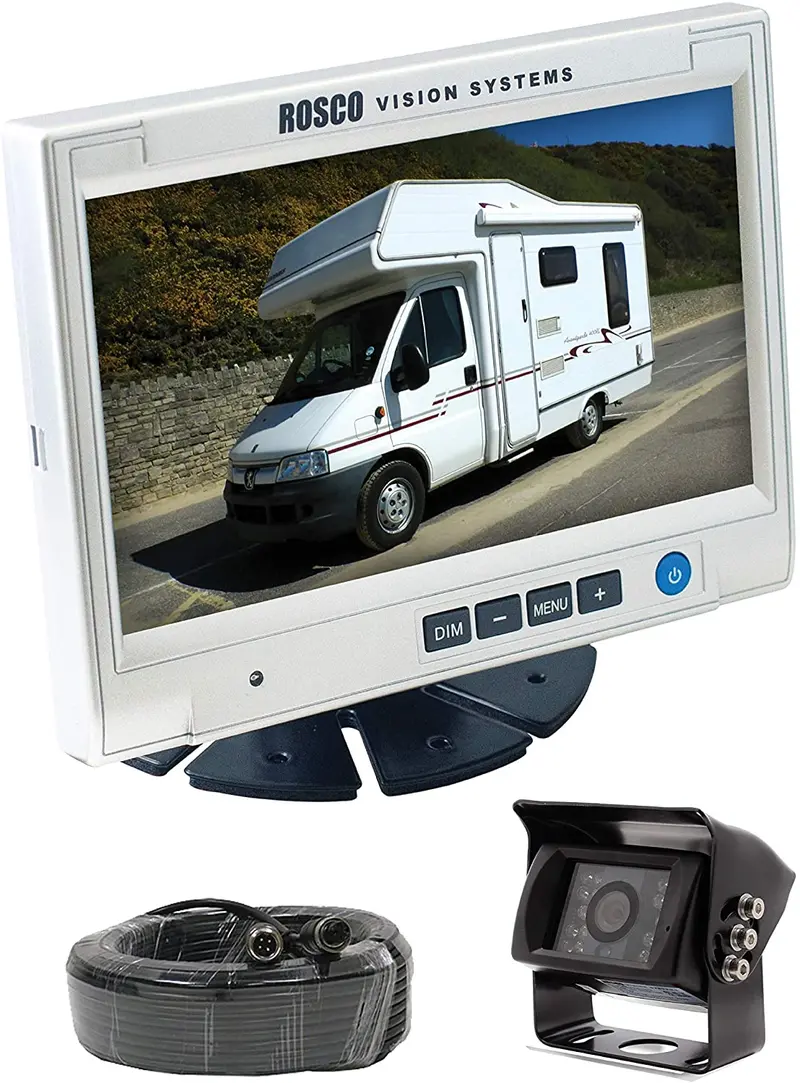

7-Inch Weatherproof Rearview Camera Kit with 65-Foot Wiring Harness

Description

Get the best in rearview safety with a backup camera and monitor from Rosco Vision Systems. Our high quality backup camera kit is perfect for any commercial vehicle with an obstructed rear view. Great for trucks, vans, buses, RV’s, motorhomes, trailers, and more, the 7” full-color LCD monitor included in this kit provides a clear, sharp display in day or night conditions.  The weatherproof, IP69 rated camera offers a 110° wide-angle view behind the vehicle for the driver’s safety. 18 infrared LEDs illuminate the camera’s view for crisp night vision.
This kit comes complete with all harnesses, connectors, and mounts for a straightforward installation. All Rosco products include USA-based customer and tech support if needed.

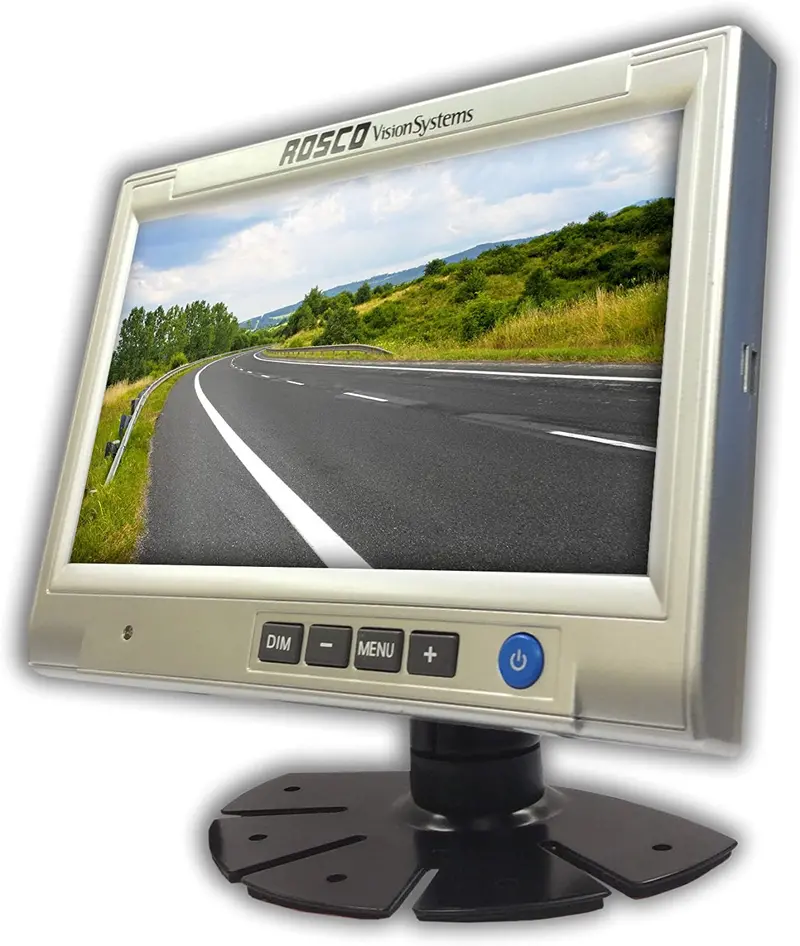

Monitor (STSM213):
Screen Size Diagonal: 7” LCD
Max. # of Cameras: 1
Screen Ratio: 16:9 Wide Screen
Resolution (Pixels): 1440(H) x 234(V)
Contrast Ratio: 300:1
Brightness: 250 cd/m2
Video System: NTSC
Input Voltage: DC 12V to 24V
Operating Temperature: -4°F to 149°F (-20°C to 65°C)
Shock Rating: 100G
Vibration Rating: 8G
Audio: Included
Weight: 0.9 lbs. (0.4 kg.)
Dimensions WxHxD: 6.9” x 5” x 1.0” (171mmx125mm x23mm)
Other Features: Menu -selectable mirror/normal image, Button -selectable day/night dimming

Camera (STSC108):
Pixels: 250,000
Resolution Horizontal: 380 TVL
InfraRed LEDs: 18
Night Vision Range: 30 Feet
Illumination: 0 Lux (with IR LEDs)
IP Rating: IP69
Shock Rating: 100G
Vibration Rating: 8G
Field of View: 110°
Input Voltage Range: DC 12V ± 2V
Operating Temperature: -5°F to 140°F (-20°C to 60°C)
Weight: 0.8 lbs. (0.40 kg.)
Dimensions W x H x D: 3.7” x 2.8” x 3.4” (95mmx70mmx86mm)
Microphone:
