7″ CCTV Backup Camera System for Skid Steers, Forklifts, RVs, and Box Trucks

Description

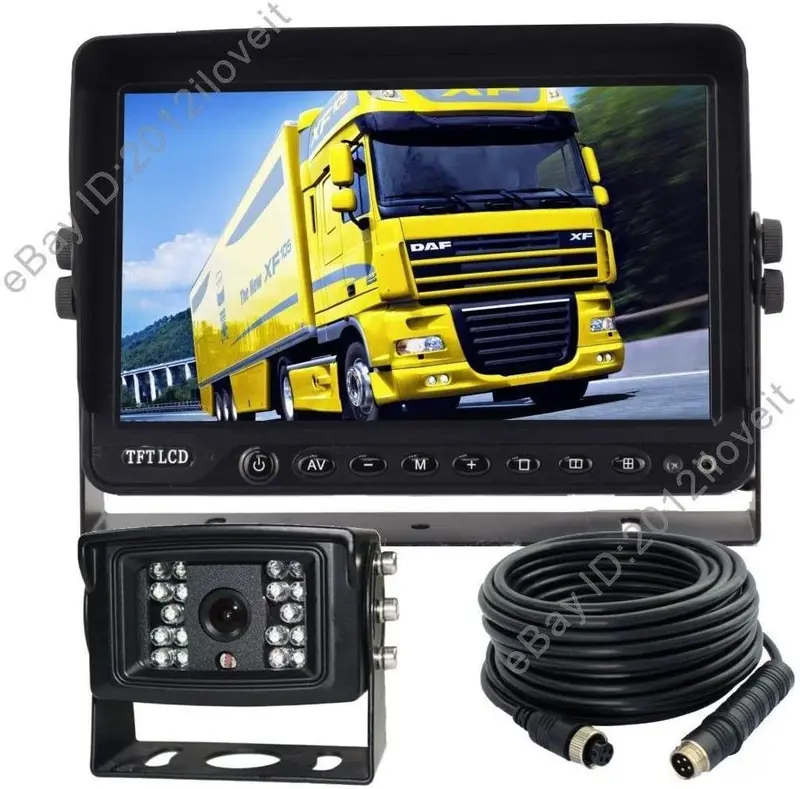

PACKAGE INCLUDING:
◇A. 7″ WIRED SINGLE VIEW MONITOR*1
◇B. CCD WATERPROOF CAMERA*1
◇C. 15METERS EXTENSION CABLE*1
◇D. MONITOR POWER CABLE*1

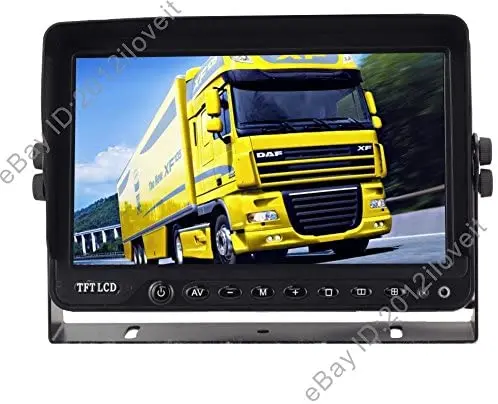

MONITOR SPECIFICATION:
◇7 Inch Wired Color Single View LCD monitor
◇Resolution: 800 *3(RGB)*480
◇TV System: NTSC/PAL
◇Multiple menu languages
◇Brightness;450cd/m2
◇Support 3 cameras video input
◇Separate trigger control wires for AV2/AV3.
◇Menu to set up reversing image delay time 0-15s, mirror/normal image.
◇Monitor will automatic switch-over the image to related camera and back to
the original mode when the trigger stops.
◇In standby mode, monitor will turn on automatically when triggered and will
switch to back up camera image，Trigger end after shutdown
◇Working voltage: DC12V-36V
◇Keys with LED backlit
◇Built-in short-circuit protector(When installing and connecting the kit,
people connects the female 4-pin connectors to the male one from the camera
and monitor, they sometimes connect the video pin of the camera to the power
pin of the monitor. It may cause a short-cut, the built-in protector may keep
the monitor away from being burnt.)
CAMERA SPECIFICATIONS:
◇sensor：1/3″SONY Color CCD
◇Resolution :420 TV lines
◇Video format: PAL / NTSC optional
◇Lens: f=2.5mm
◇Lens Angle: 120°
◇Infrared LED light: 9PCS
◇IR Distance: 35ft
◇Waterproof Rate：IP69K,
◇Shell material:aluminum alloy(camera never gets rusty, and has a higher
ability in heat radiation than iron housing.)
◇Dustproof, waterproof, hydrochloric acid prevention, explosion prevention
◇Color:Black
