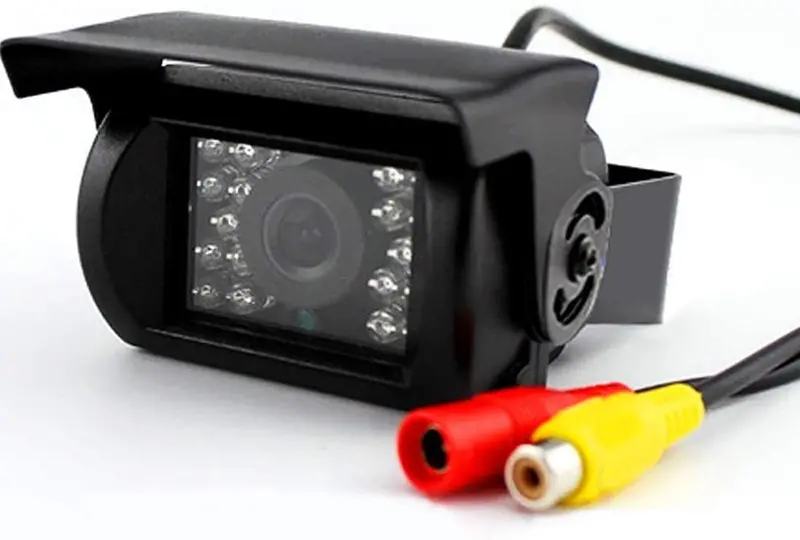

4-Pin Waterproof 12V/24V Rearview Camera for Trucks, RVs, and Commercial Vehicles

Description

Color: 4Pin Black CAMERA

* Waterproof IP 68, Can be used both in car and home
* CMOS 7440 Mirror image sensor with No Grid Lines
* 700 TV Line
* 4Pin Connector for Water Proof / Shock Proof Rear View Camera
* Includes 18 IR LED, support 10-15ft night vision
* Build with 2.8mm len 130°wide view angle
* Applicable to variety of Vehicles: Car,BUS,Truck,RV,Motorhome,Van Heavy Duty etc
* Can help avoid incidents and accidents abrasion well
* Easy to install
Specification:
Image Sensor:CMOS 7440 Mirror Without Grid Lines
Horizontal Resolution:700 TVL
Minimum Illumination:0Lux
Number of pixels:720(H)*586(V)
Lens: 2.8mm
Diagonal Viewing Angle:130 degree
Signal to noise ratio:>48db(AGC OFF)
TV System:NTSC
Scan frequency:50Hz-60Hz
Electronic Shutter: 1/60 ~ 1/15,000sec
Backlight compensation:Auto
White Balance:Auto Tracing
Auto Gain Control:Automatic
Night vision: Yes
Synchronous System:International Synchronization
work Temperature: -20°C~+60°C
Waterproof:IP 68
Housing Material: Iron/Aluminum
Video Output:4 Pin Connetor 1.0Vp-p.1.5ω.
Power:DC 12V-24V
Current Consumption:Less than 50MA
Camera comes with female connector
Package Includes:
1* 4 Pin IR Car Backup Camera (Black)
