3/8 FUEL LINE KIT

Package Included:

1 * AN-6 Nylon Stainless Steel Braided Hose 20Ft (100% Brand New Never Used Or Installed)

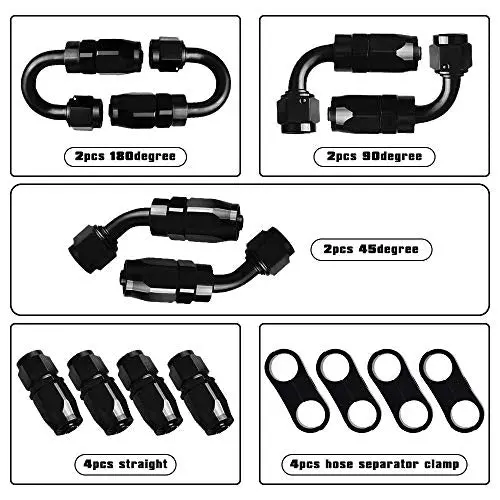

4 * AN-6 Straight Reusable Swivel Hose End

2 * AN-6 45 Degree Reusable Swivel Hose End

2 * AN-6 90 Degree Reusable Swivel Hose End

2 * AN-6 180 Degree Reusable Swivel Hose End

4 * AN-6 6an hose separator clamp

1 * For cutting Fuel Line Splicing Tape

PAY ATTENTION：

• Professional Installation is Highly Recommended
• Installation Instruction is NOT Included
• Please measure before purchase！！！
• Not fit E85 ！！！

PARAMETER

Material	made of high quality Aluminum Fitting with Stainless Steel Nylon Braided hose
Length	20FT（6M）
Working Pressure	500PSI
Burst Pressure	2000PSI
Working Temperature	-40℃ to 125℃（-40℉to 257℉）
Color	black

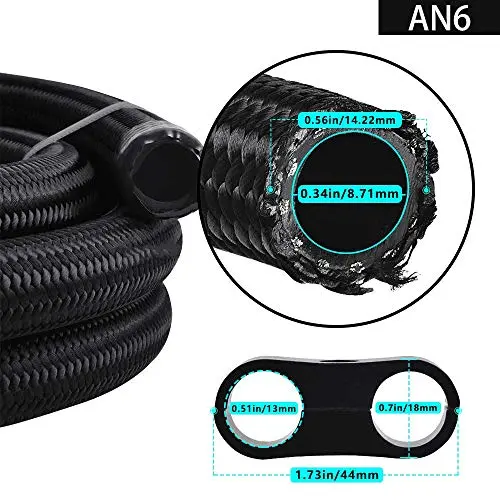

Inner Diameter	0.34inch (8.71mm)
Outside Diameter	0.56inch (14.22mm)

---

About this item

This fits your .
• by entering your model number.

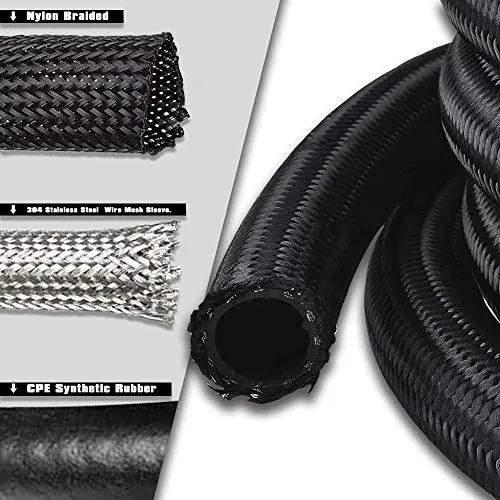

• HIGH PRESSURE FUEL LINE features an nylon fiber braided outer cover and CPE synthetic rubber inner line. Maximum Working Pressure (psi): 500 psi. Bursting Pressure(psi): 2000psi. Working Temperature Range: -40℉ to 257℉(-40℃ to 125℃).
• The 6AN nylon braided fuel line kit includes:For cutting Fuel Line Splicing Tape,10pcs 6AN swivel hose ends,4pcs 6AN hose separator clamp and 3/8 braided fuel line 20 Ft.Hose Inner Diameter: 0.34inch (8.71mm).Hose Outside Diameter:0.56inch (14.22mm).
• The nylon fuel line hose mostly can be work with coolant, diesel, oil, hydraulic fluid, pump gas, air and fuel. Not fit E85
• This 3/8 fuel hose can be used in brake system, fuel pump, fuel filter, oil return, fuel return system, turbo cooler system, and transmission system, oil cooler kit, etc.
• Nylon fiber and stainless steel braid 6AN cover for excellent flexibility and resistance to abrasion. Outer nylon braided has excellent inflaming and safer to use.Reference installation instruction included.
