10A Mini Backlit Green Display Amplifier Panel (1.89″ × 0.87″ × 1.14″)

Description

Color: Font backlit green

Features:
1. Good product stability and high measurement accuracy.
2. The exterior size is standard and easy to install.
3. Uses polarity protection line for Power supply.
4. Mini size, portable and convenient.
5. High quality and durable for long term use.
Spec:
Technical Parameters:
Supply voltage: DC4.5~30V
Ammeter range: 10A (with overcurrent protection)
Working current: <30mA
Weight: 17.5g/0.62oz
Display mode: 3 digits 0.56′
Size: Approx. 48*22*29mm/1.89*0.87*1.14in (length X width X height)
Mounting bore: 45.5*25.5 mm/1.79*1 in
Measuring rate: >200Ms
Measurement accuracy: 1%
Extreme working conditions:
Low operating voltage: 4.5V
Maximum operating voltage: +30V
Maximum current output: 9.99A Operating temperature: 1~+65°C)
Working humidity: 10~80% (no condensation)
Working pressure: 80-106kPa
Sun exposure: no direct irradiation

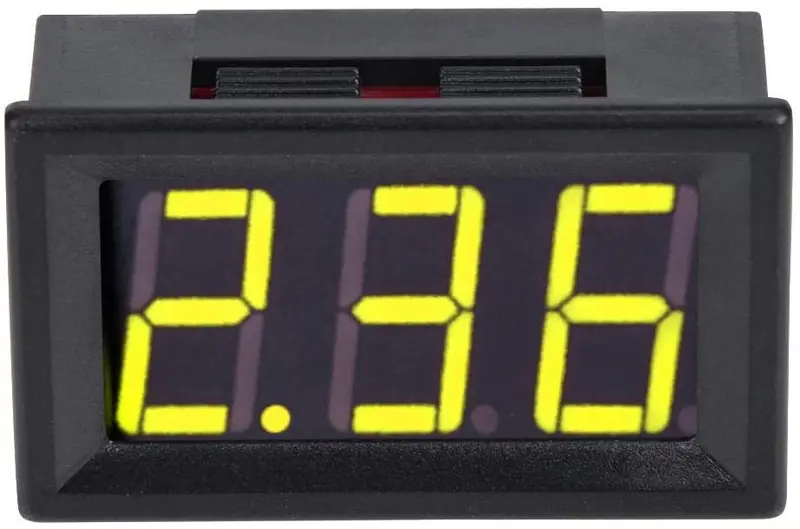

Color: Red Yellow Green Blue Optional
Package List:
1 * Digital DC current Ammeter
2 * Cable
